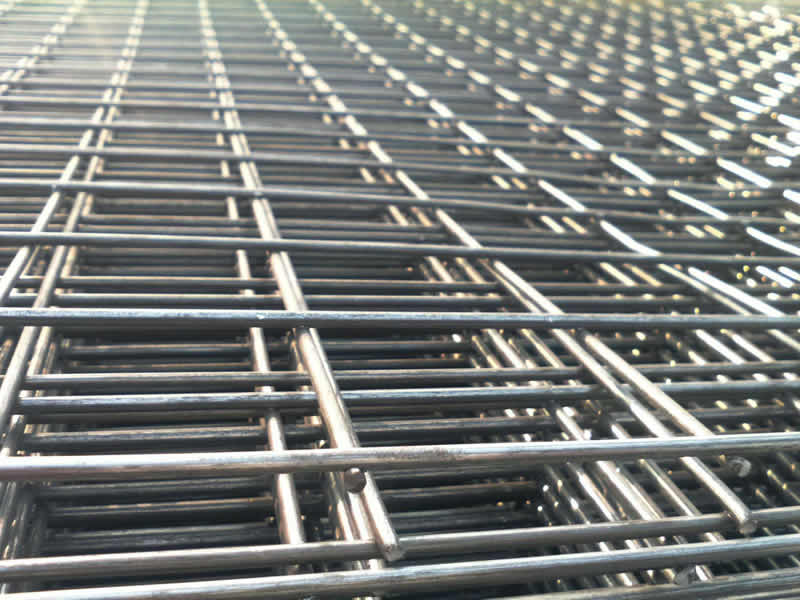

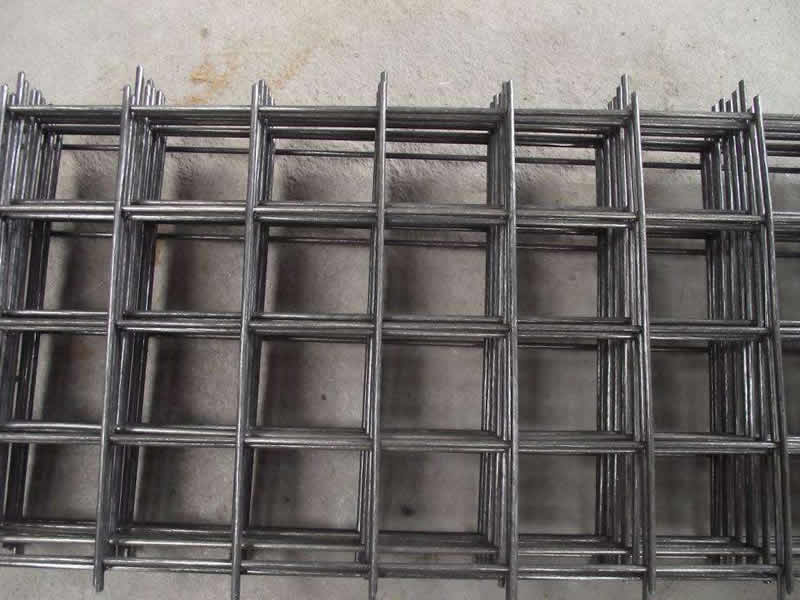

Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.

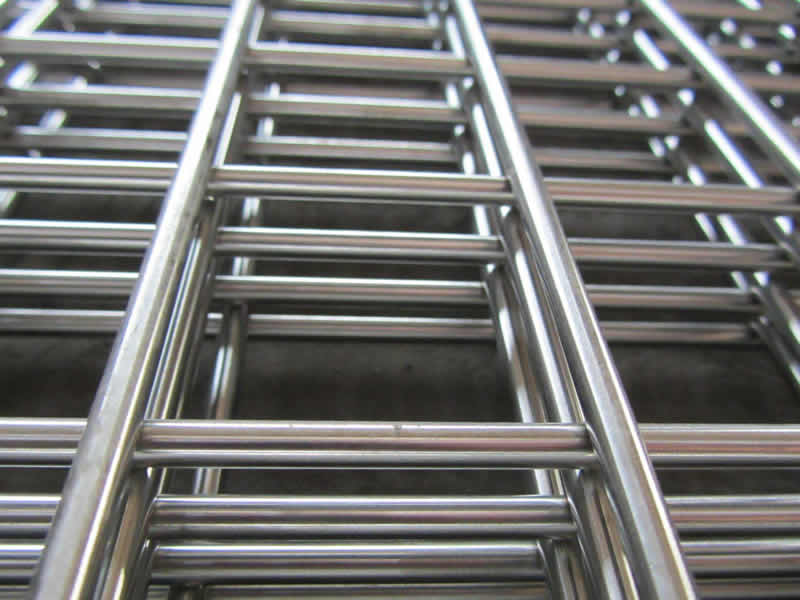

Material: Low carbon steel wire, stainless steel wire and rebar wire.

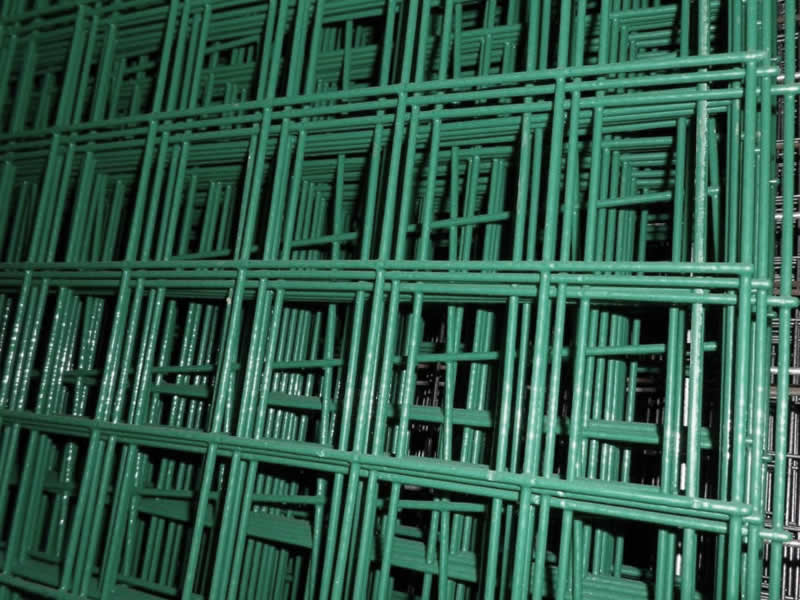

Variety: galvanized, PVC etc.

Characteristics: even surface, firm structure, precise opening etc, it has the good property of corrosion-resisting and oxidation-Resisting.

Usage: It is widely used on building, food, agriculture etc. For example, it is useded on reinforced concrete construction, floor slabs reinforcement, brick wall reinforcement, floor warming etc.

Wire Diameter(mm)	Aperture (mm)		Width(m)	Length
	Inch	MM
2.0mm-3.2mm	1"	25.4	0.914m-1.83m	The length does not limit
2.0mm-4.5mm	2"	50.8	0.914m-2.75m
2.0mm-6.0mm	3"	70.2	0.914m-2.75m
2.0mm-6.0mm	4"	101.6	0.914m-2.75m
2.0mm-6.0mm	5"	127	0.914m-2.75m
2.0mm-6.0mm	6"	152.4	0.914m-2.75m
2.0mm-6.0mm	7"	177.8	0.914m-2.75m
2.0mm-6.0mm	8"	203.2	0.914m-2.75m
