Materials: Made of high quality mild steel wire rods.

Wire gauge size: 8#-------36#.

According to the difference of zinc coating process. can be divided into (a). electro galvanized steel wire (b). hot-dipped galvanized steel wire.

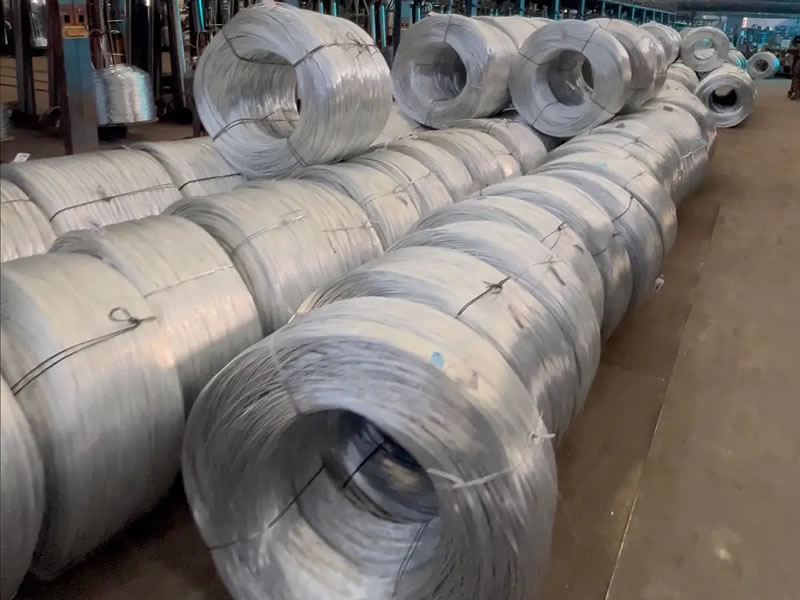

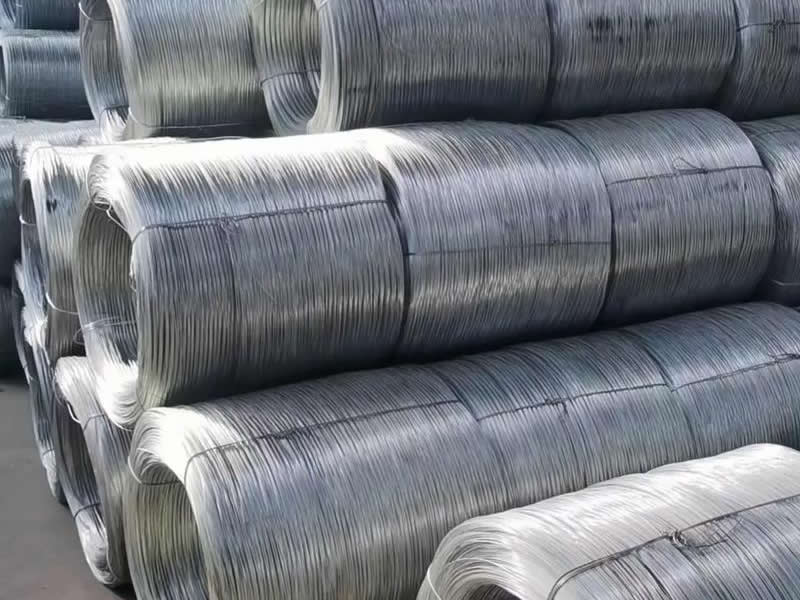

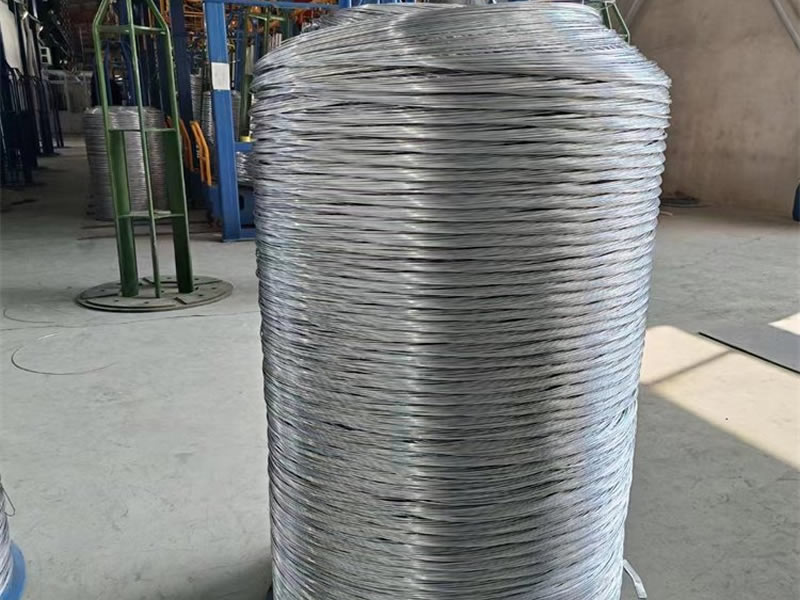

Galvanized steel wire, also known as galvanized iron wire, finds most uses in binding of construction materials or weaving of galvanized wire mesh products.

Packingplastic film inside, hessian cloth outside.

The galvanized iron wire is devided into hot dipped galvanized wire and cold galvanized wire(electro galvanized wire), made of high quality mild steel by drawing forming, acid picking and rust removing, high temperature annealing, hot dip galvanization and cooling.

Characteristics: Has good tenacity and elastcity, characterized by thick galvanizing layer and corrosion resistance.

Application

Mainly used in construction, handicrafts, weaving nets, communications equipment, medical equipment and brushes, cables, filters, high pressure pipe industry.

Gauge	SWG		BWG		BG		AWG
#	inch	mm	inch	mm	inch	mm	inch	mm
0	0.324	8.23	0.34	8.639	0.3954	10.069	0.3249	8.252
1	0.3	7.62	0.03	7.62	0.3532	8.971	0.2893	7.348
2	0.276	7.01	0.284	7.214	0.3147	7.993	0.2576	6.544
3	0.252	6.401	0.259	6.579	0.2804	7.122	0.2294	5.827
4	0.232	5.893	0.283	6.045	0.25	6.35	0.2043	5.189
5	0.212	5.385	0.22	5.588	0.2225	5.652	0.1819	4.621
6	0.192	4.877	0.203	5.156	0.1981	5.032	0.162	4.115
7	0.176	4.47	0.18	4.572	0.1764	4.481	0.1443	3.665
8	0.16	4.046	0.165	4.191	0.157	3.988	0.1285	3.264
9	0.144	3.658	0.148	3.759	0.1398	3.551	0.1144	2.906
10	0.128	3.215	0.134	3.404	0.125	3.175	0.1019	2.588
11	0.116	2.946	0.12	3.048	0.1113	2.827	0.0907	2.305
12	0.104	2.642	0.109	2.769	0.0991	2.517	0.0808	2.053
13	0.092	2.337	0.095	2.413	0.0882	2.24	0.072	1.828
14	0.08	2.032	0.083	2.108	0.0785	1.994	0.0641	1.628
15	0.072	1.829	0.072	1.829	0.0699	1.775	0.0571	1.45
16	0.064	1.626	0.065	1.651	0.0625	1.588	0.0508	1.291
17	0.056	1.422	0.058	1.473	0.0556	1.412	0.0453	1.15
18	0.048	1.219	0.049	1.245	0.0495	1.257	0.0403	1.024
19	0.04	1.016	0.042	1.067	0.044	1.118	0.0359	0.912
20	0.036	0.914	0.035	0.839	0.0392	0.996	0.032	0.812
21	0.032	0.813	0.032	0.831	0.349	0.887	0.0285	0.723
22	0.028	0.711	0.028	0.711	0.03125	0.749	0.02535	0.644
23	0.024	0.61	0.025	0.635	0.02782	0.707	0.02256	0.573
24	0.022	0.559	0.022	0.559	0.02476	0.629	0.02011	0.511
25	0.02	0.508	0.02	0.508	0.02204	0.56	0.01791	0.455
26	0.018	0.457	0.018	0.457	0.01961	0.498	0.01594	0.405
27	0.0164	0.417	0.016	0.406	0.01745	0.443	0.0142	0.361
28	0.0148	0.376	0.014	0.356	0.01562	0.397	0.01264	0.321
29	0.0136	0.345	0.013	0.33	0.0139	0.353	0.01126	0.286
30	0.0124	0.315	0.012	0.305	0.0123	0.312	0.01003	0.255
31	0.0116	0.295	0.01	0.254	0.011	0.27	0.00893	0.227
32	0.0108	0.274	0.009	0.229	0.0098	0.249	0.00795	0.202
33	0.01	0.254	0.008	0.203	0.0087	0.221	0.00708	0.18
34	0.0092	0.234	0.007	0.178	0.0077	0.196	0.0063	0.16
35	0.0084	0.213	0.005	0.127	0.0069	0.175	0.00561	0.143
36	0.0076	0.193	0.004	0.102	0.0061	0.155	0.005	0.127
